Parallel opening

Download as pdf

With the parallel opening system the sash can be moved 3 mm inwards for ventilation. The sash can also be entirely opened once the handle is in the service position.The handle can be placed on the side of the window or on the bottom of the window.

There are two options for the function:

  • You can either choose to have the side hung position first and the parallel position after that. Shown in the first film at the right side.
  • Or you can choose to have the parallel position first and after that the side hung position. Shown in the second film at the right side.



See a video about parallel opening

Youtube

Product images

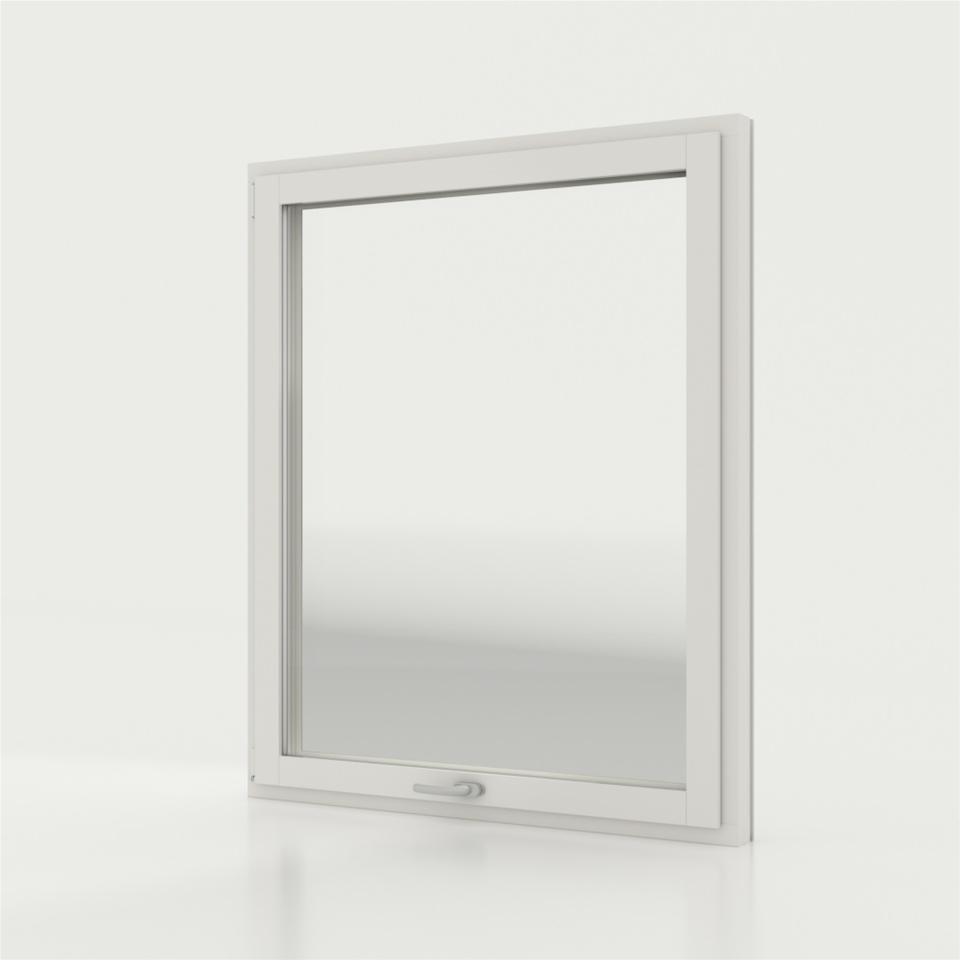

Original configuration

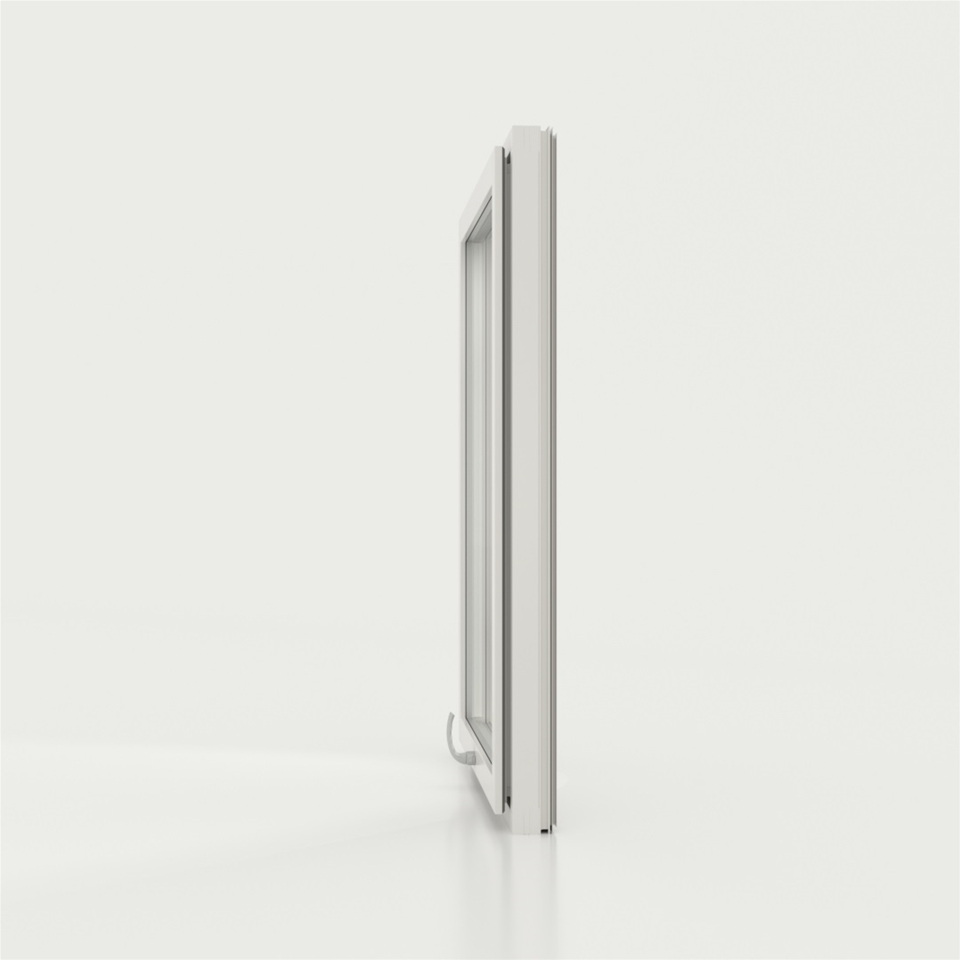

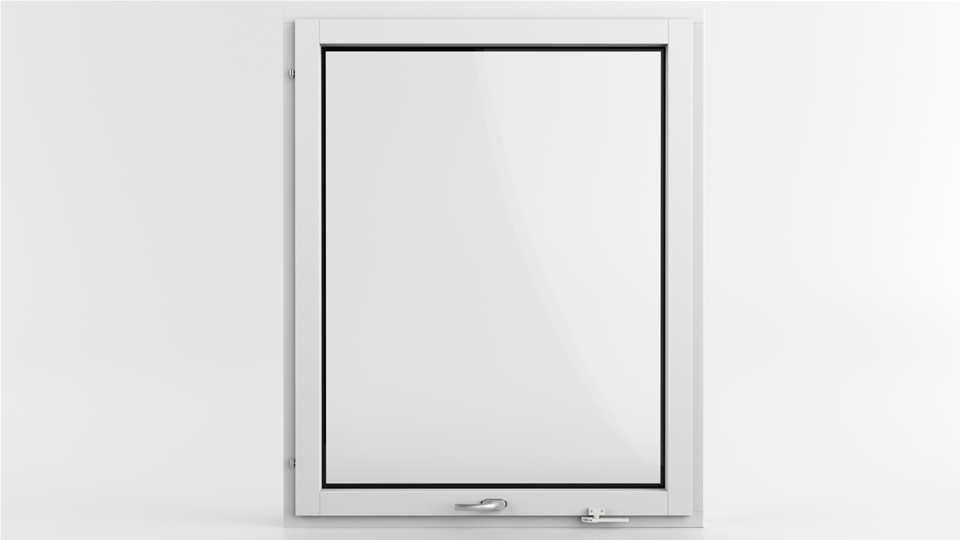

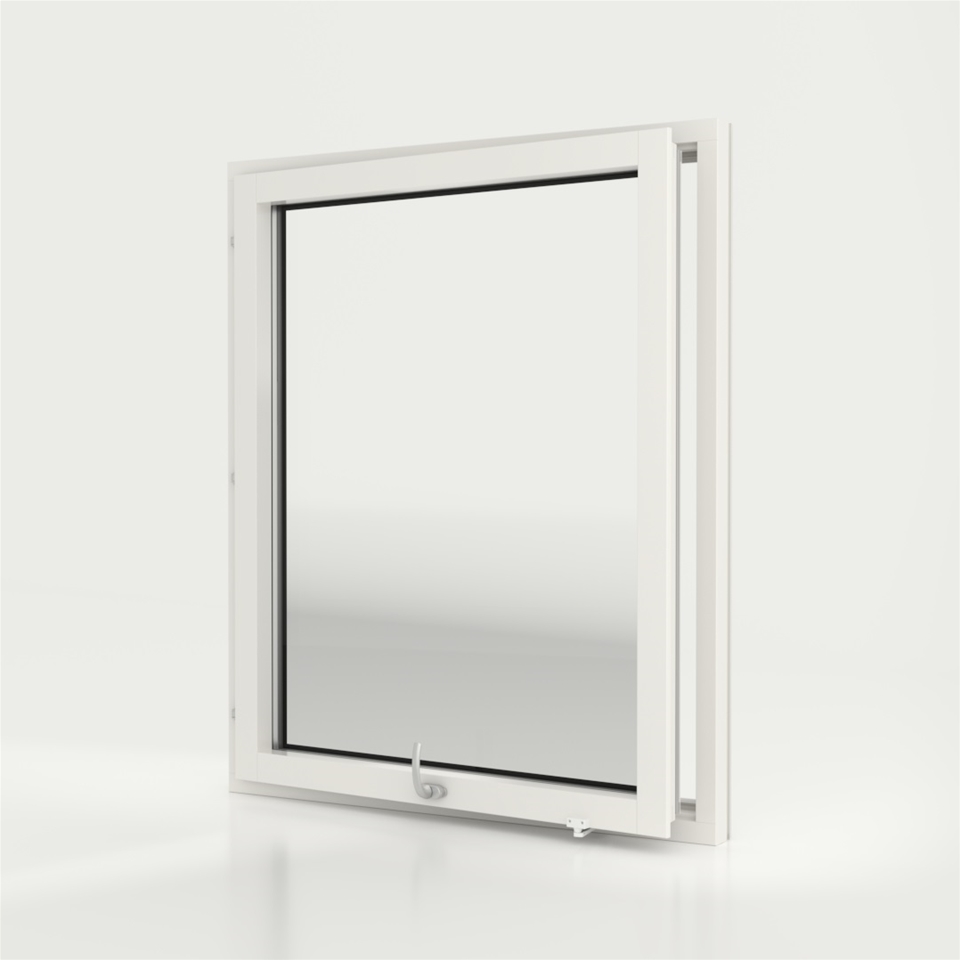

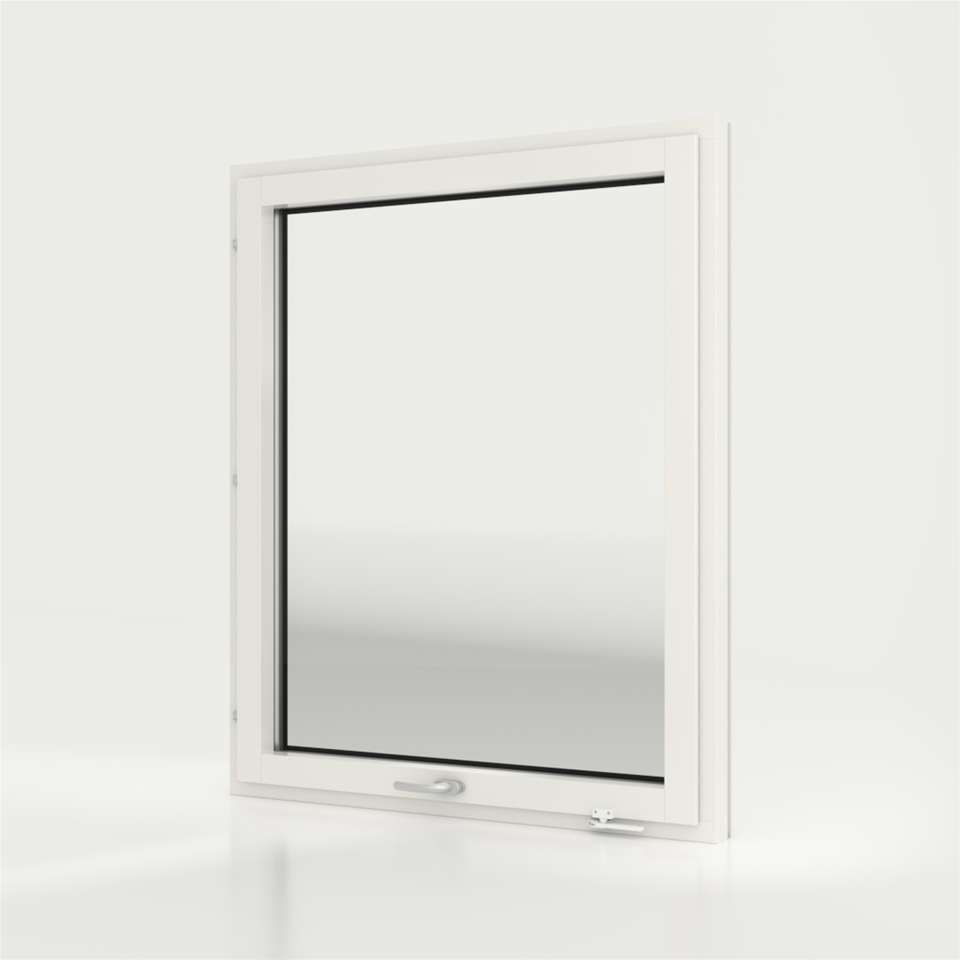

Closed position Parallel opening position Parallel opening position Parallel opening position Side hung position

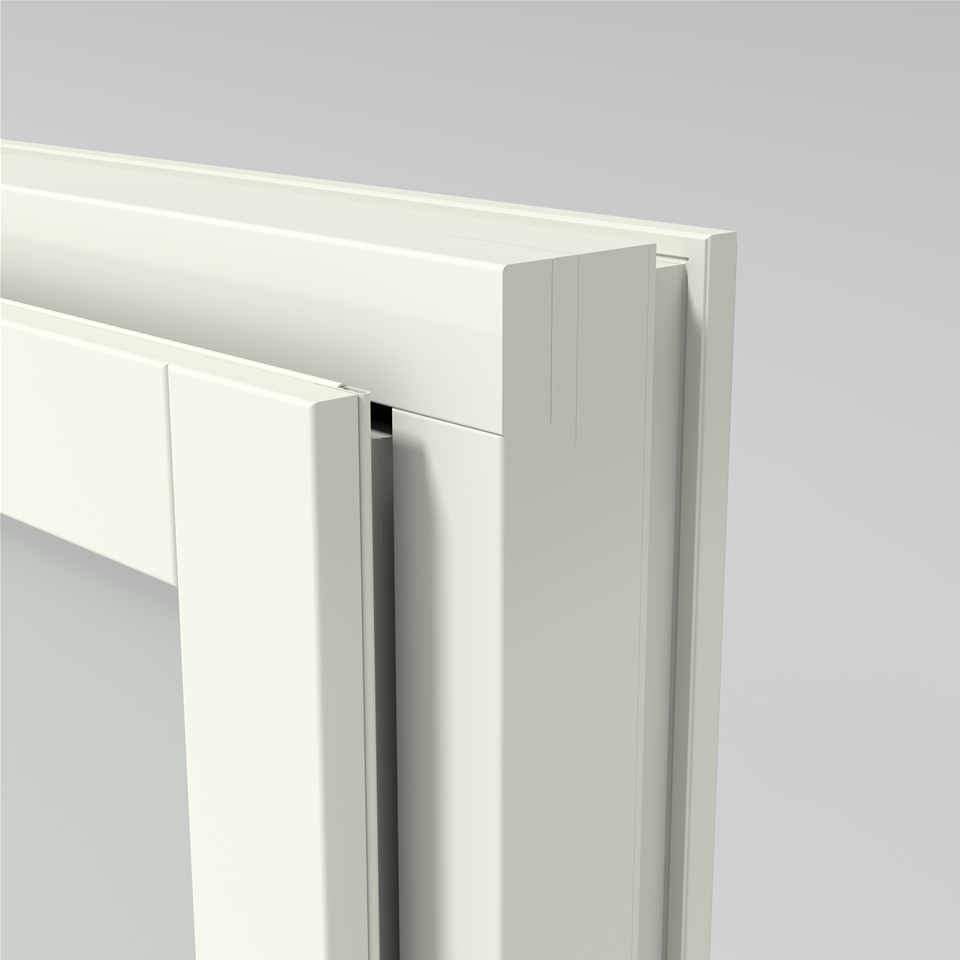

Alternative profiles

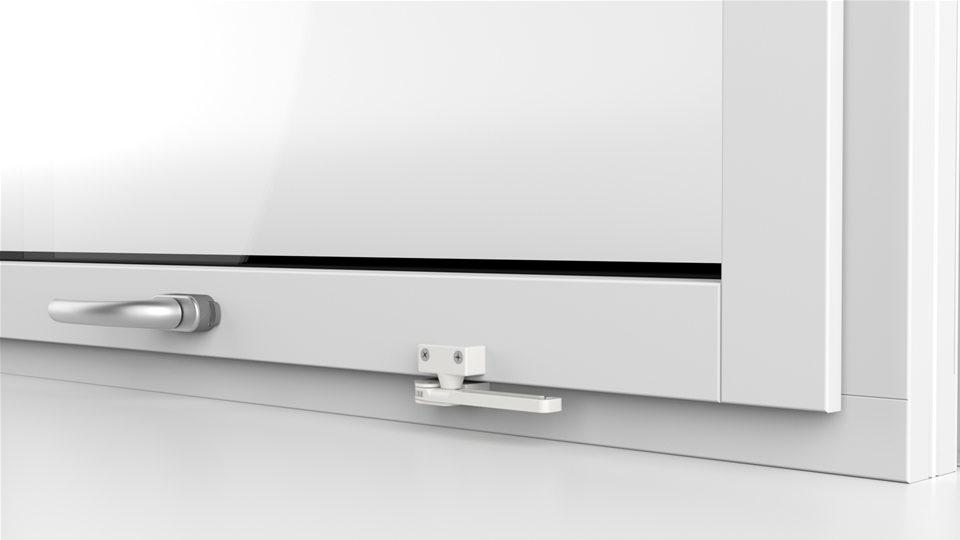

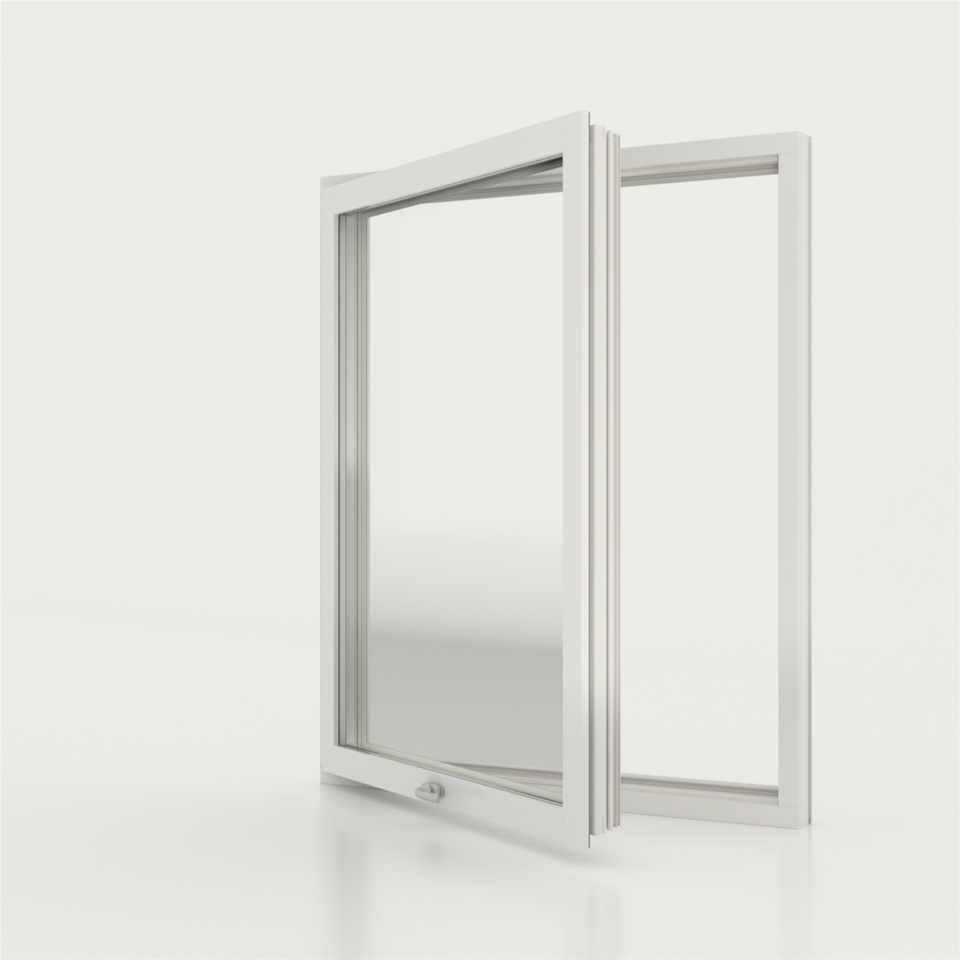

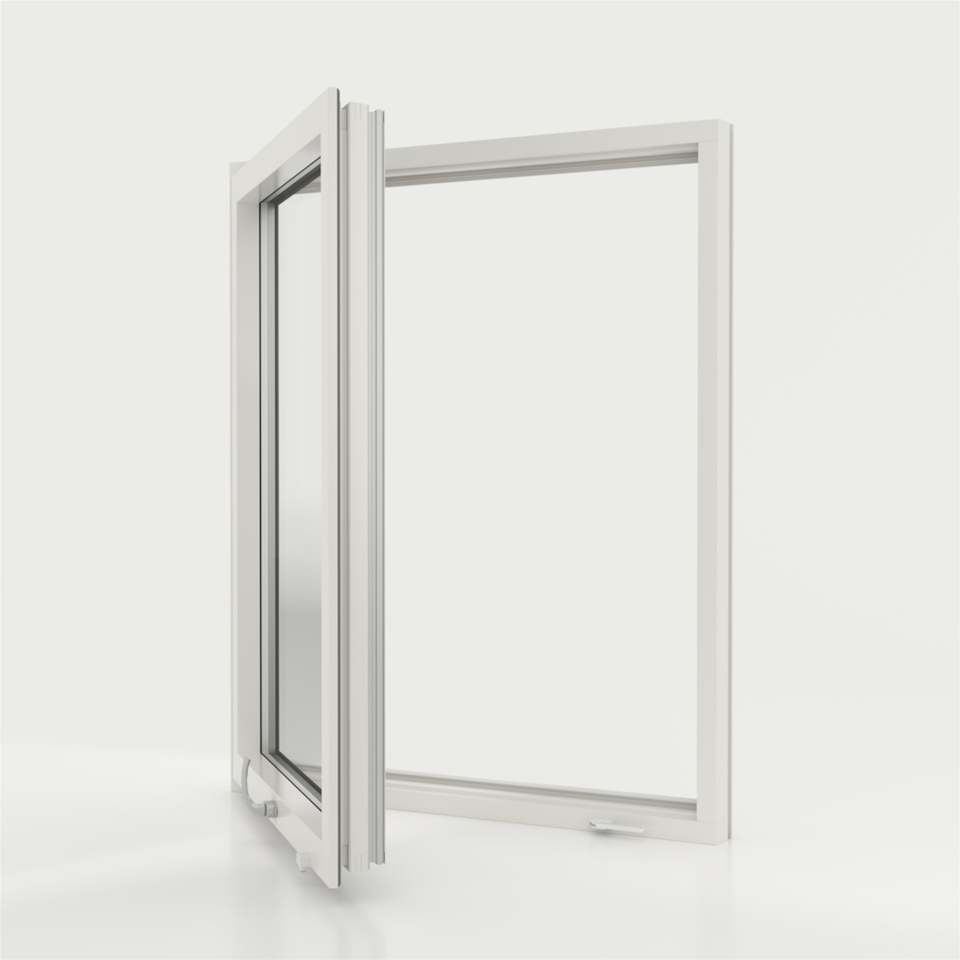

Handle bottom Handle bottom Handle bottom Side hung with pin hinges and friction stay Side hung with pin hinges and friction stay Side hung with pin hinges and friction stay Parallel opening with restrictor Parallel opening with restrictor Parallel opening with restrictor Parallel opening with restrictor Parallel opening with restrictor


References

Project name Hornsey Town Hall
Client Ardmore Construction Ltd
Location/town London
Window model Stil
Project name Malmesbury Terrace
Client Rooff Limited
Location/town London
Window model Royal
Project name Royal Exchange
Client St. George City Ltd
Location/town London
Window model Stil
Project name Welbourne
Client United Living (South) Ltd.
Location/town London
Window model Stil
